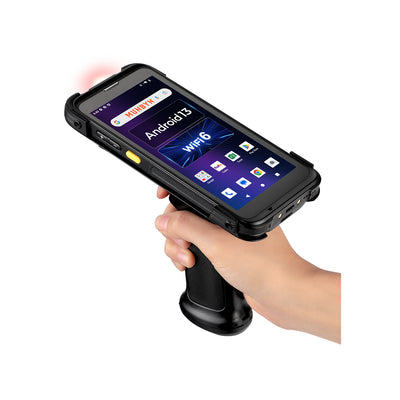

• The Android barcode scanner IPDA101P adopts the highest PDA Android system in the Enterprise market, thereby maximizing the application user experience.
  • Using Android 13 OS ensures the data and processing are safe and protects your privacy.

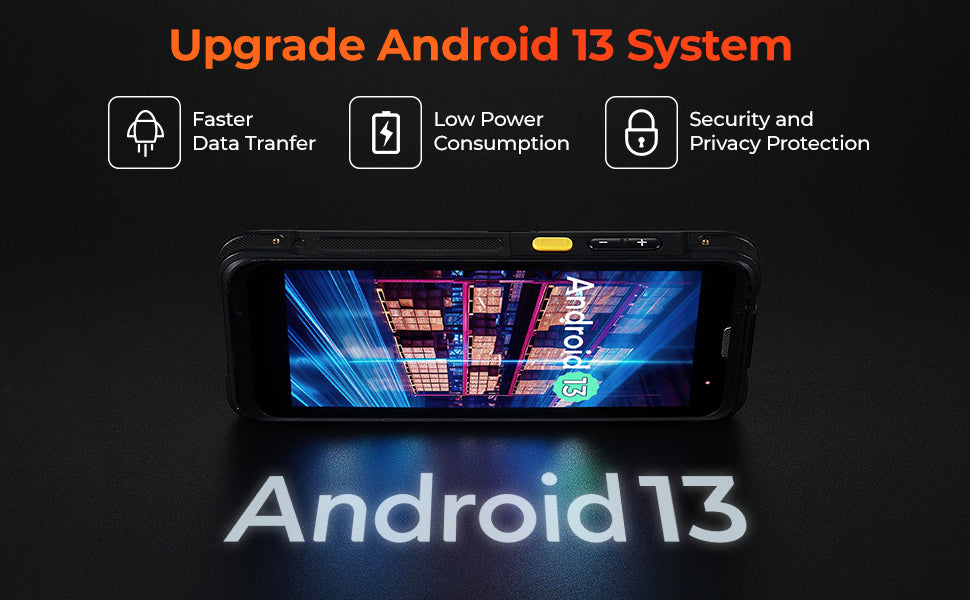

Three Main Advantages:

  1. Faster Data Tranfer: The latest version of Android system allows device hardware to better integrate with the latest operating system and improves the smoothness of device operation.
  2. Low Power Consumption: Android 13 includes several features designed to reduce power consumption and extend device battery life. The updated version of Android 13 system greatly improves energy efficiency compared to the previous old system version.
  3. Security and Privacy Protection: In Android 13, the capability to integrate barcode scanning features doesn't inherently come with specific security and privacy protections tied directly to the action of scanning barcodes. However, the overall security and privacy framework provided by Android 13 can indirectly benefit applications used in warehousing and logistics, including those that utilize barcode scanning functionality.

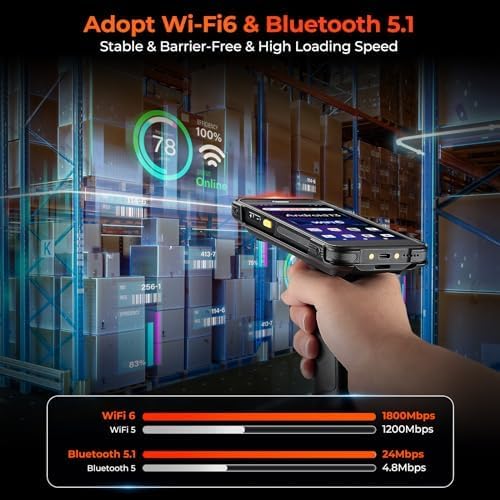

High Performance Wi-Fi 6, Key Features & Benefits

  • It’s triple the speed, and Wi-Fi 6 offers much faster data rates. It can raise 300% efficiency when downloading or transferring files.
  • Where Wi-Fi 5 (802.11ac) maxes out at 1200 Mbps, Wi-Fi 6 offers a maximum possible data rate of 1800 Mbps, potentially tripling the speed of its predecessor, Wi-Fi 5,6, and providing support for more bandwidth-intensive applications.

Compared to WiFi 5:

  1. More Capacity Up to 4 times;
  2. Data Throughput Increase Up to 40%;
  3. Backwards Compatibility Up to 100%.

High-end Cnfiguration, Designed to Solve Problems

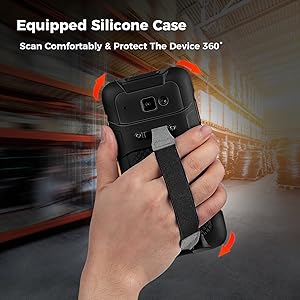

360° Protection Surround

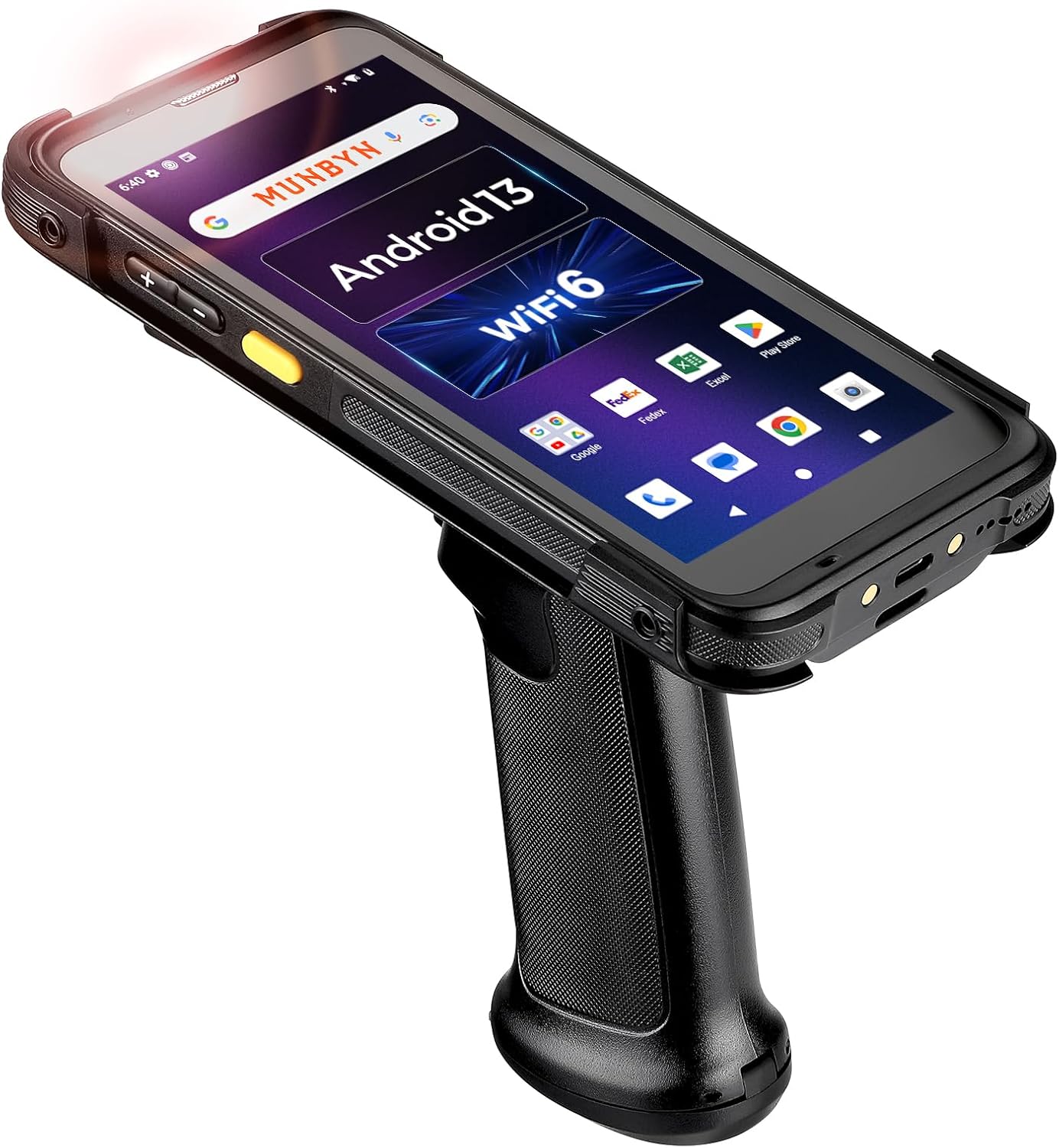

The deviceBesides the pistol grip, the package comes with an extra case that can protect the device from dropping.A belt strap gives users a better experience, easy to hold in retail, logistics, and so on.

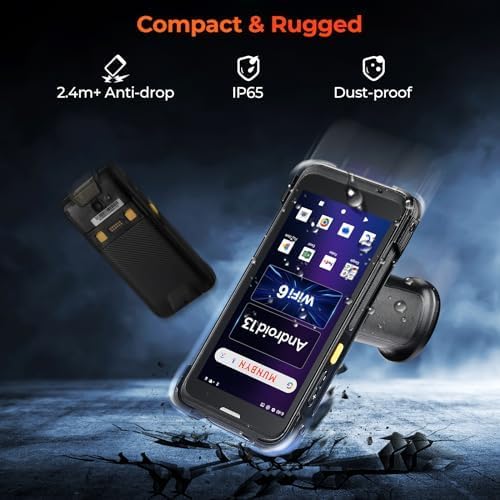

Compact Yet Modern Form-factor

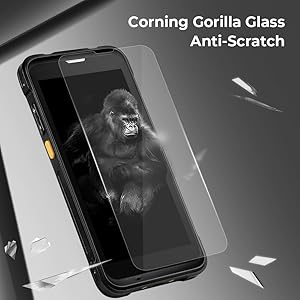

This Android scanner adopts Corning Gorilla glass, crash-durable, enhancing the use life of the screen.Meanwhile with a 5.5-inch full-touch display, easier to catch each piece of information easily.What's more, it comes with a screen film for replacement.

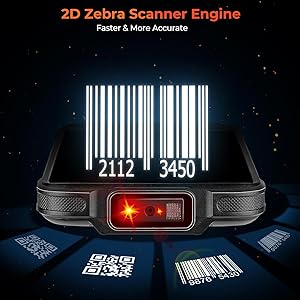

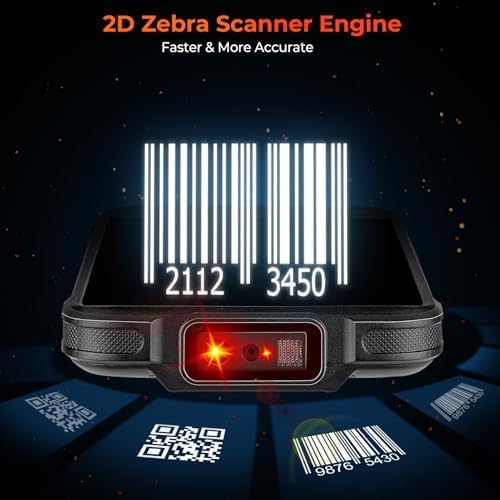

Advanced Scanner Engine
Support these kinds of barcodes:

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

360° Protection Surround

The deviceBesides the pistol grip, the package comes with an extra case that can protect the device from dropping.A belt strap gives users a better experience, easy to hold in retail, logistics, and so on.

Compact Yet Modern Form-factor

This Android scanner adopts Corning Gorilla glass, crash-durable, enhancing the use life of the screen.Meanwhile with a 5.5-inch full-touch display, easier to catch each piece of information easily.What's more, it comes with a screen film for replacement.

Advanced Scanner Engine
Support these kinds of barcodes:

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

Display Screen 5.5-inch high definition full display (18:9) , IPS LTPS 1440 x 720 Screen brightness: 450-500nit
Expand Port 1 slot for SIM card, 1 slot for SIM or TF card
Communication Interface USB Type-C, USB 3.1, OTG, extended thimble
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Sensor Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
Indicator LED Power, charging, status indicator
SDK Development Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/ax,2.4G,5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13)
WLAN 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations
WWAN (America) Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv
Vo-LTE 2G: 850/900/1800/1900 MHz; 3G: 850/900/1900/2100 MHz; 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Bluetooth Support Vo-LTE HD video voice call
GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
NFC Frequency: 13.56MHz; Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; Chips: M1 card (S50, S70), CPU card, NFC tags, etc.; Range: 2-4 cm
2D Imager Scanner Zebra: SE4710, Support UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
